Product Glance | |

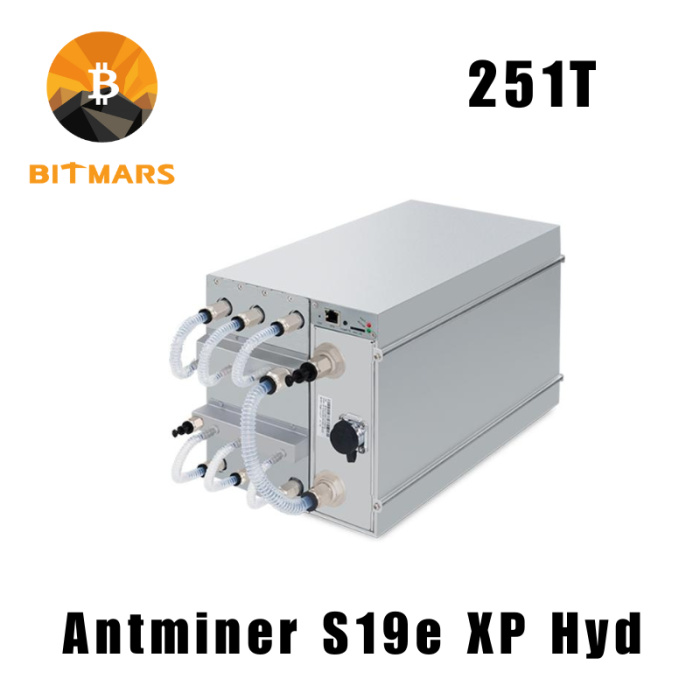

Model | S19e XP Hyd. |
Algorithm | Cryptocurrency | SHA256 | BTC/BCH/BSV |
Typical Hashrate, TH/s(1-1) | 251 |
Power on wall @35°C, Watt(1-1) | 5522 |
Power efficiency on wall @35°C, J/TH(1-1) | 22 |
Detailed Characteristics | |
Power supply | |
Power supply AC input voltage, Volt(2-1) | 380~415V AC |
Power supply AC Input Frequency Range, Hz | 50~60 |
Power supply AC Input current, Amp(2-2) | 12 |
Hardware Configuration | |
Networking connection mode | RJ45 Ethernet 10/100M |
Miner Size (Length*Width*Height, w/o package),mm | 410*170*209 |
Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
Net weight, kg | 12.8 |
Gross weight, kg | 14.1 |
Working fluid(2-5) | Deionized water/Pure water |
Environment Requirements | |
Inlet water temperature, °C(2-3) | 20~50 |
Water flow, L/min | 8.0~10.0 |
Water pressure, bar | ≤3.5 |
Working fluid(2-4) | Antifreeze/ Deionized water/ Pure water |
Liquid PH | 8.5~9.5 |
Diameter of water pipe connector, mm | DN10 |
Storage temperature, °C | -20~70 |
Operation humidity(non-condensing), RH | 10~90% |
NOTE:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(1-2) Inlet water temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) Three-phase AC input, 12 A per wire.
(2-3) If the inlet water temperature is lower than 20 °C, the miner cannot be started. For the external dry cooler (EC2-DT),
• if the outlet water temperature is 35°C, the maximum ambient temperature is 30°C;
• if the outlet water temperature is 45°C, the maximum ambient temperature is 40°C;
• if the outlet water temperature is 50°C, the maximum ambient temperature is 45°C.
(2-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
Additional information
| Purchasing Guidelines
- The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above. Welcome to ask for details for different order.
For some countries,DDP service (PRICE including the custom cost and shipping charge) also can be provided. - The pictures shown are for reference only; the final shipment version shall prevail.
- We kindly request your understanding that once an order or preorder has been placed with BITMARS Group, it is considered final and cannot be canceled.
| Shipping Details
- Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMARS has received full payment.
- For the pre-order, the specific delivery date of which is subject to the factory. If there is any update on the schedule, BITMARS would keep the buyer fully informed.
- Clicking here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products.
| Warranty
- Kindly note that for new brand 100% miners,warranty is 12 months/6 months (up to different policy from factory ) since the production from factory.
- BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
- If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
- Clicking here for a complete list of the Terms & Conditions that apply to all orders placed on shop.bitmain.com.
