NOTE:
(1-1) Inlet water temperature
(2-1) Caution: Wrong input voltage may probably cause miner damaged
(2-2）Three-phaseAC input wires, 10A per wire
(2-3)Operation altitude is recommended below 2000m
| Product Glance | |

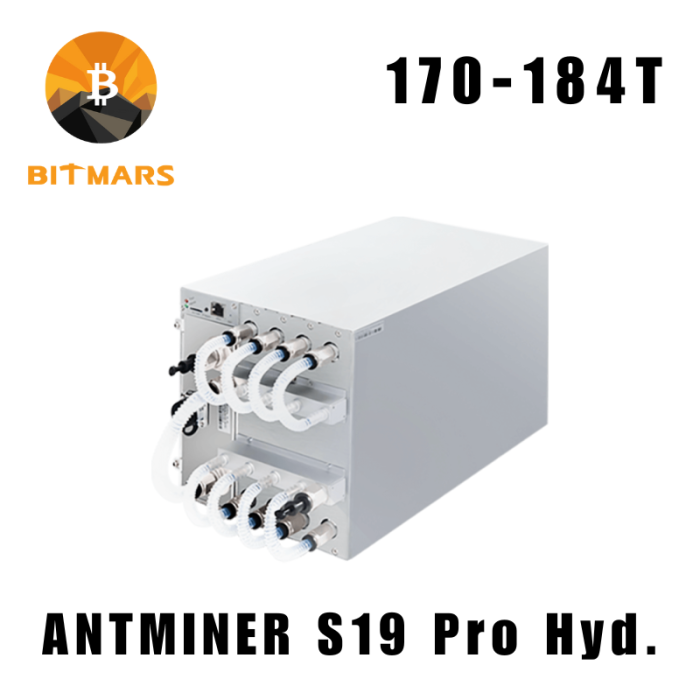

| Model | S19 Pro Hyd. |
| Algorithm | Cryptocurrency | SHA256 | BTC/BCH/BSV |
| Hashrate, TH/s | 184 ±3% |
| Power on wall @35°C, Watt(1-1) | 5428 ±5% |
| Power efficiency on wall @35°C, J/TH(1-1) | 29.5 ±5% |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage, Volt(2-1) | 342~418 |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(2-2) | 30 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm | 336*175.5*208 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg | 13.0 |
| Gross weight, kg | 15.6 |
| Environment Requirements | |
| Operation temperature,°C(2-3) | 0~40 |
| Inlet water temperature,°C | 20-40 |
| Water flow L/min | 8±10% |
| Water pressure bar | ≤3.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
