Version: S19j Pro 96/100/104T
Model No.: 240-Cb

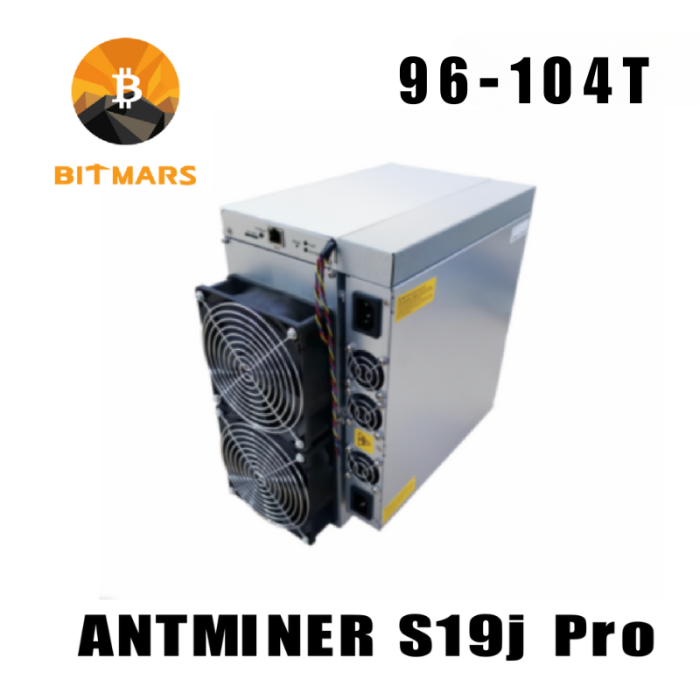

The Antminer S19j Pro 96/100/104T, developed by Bitmain, is a powerful ASIC miner equipped for mining the SHA-256 algorithm. It boasts a maximum hashrate of 96/100/104Th/s, making it an efficient tool for mining cryptocurrencies like Bitcoin. However, this performance comes with a substantial power consumption of 2832/2950/3068W, emphasizing its focus on high-level operation over energy conservation1.
Notes:
(1-1) Caution: Wrong input voltage may probably cause server damaged.
(1-2) Max condition: temperature 40°C, altitude 0m.
(1-3) Two AC input wires, 10A per wire.
(2-1) Including PSU size.
(2-2) Including PSU weight.
(3-1) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
| Product Glance | Value |
| Version | S19j Pro |
| Crypto Algorithm/Coins | SHA256/BTC/BCH |
| Hashrate, TH/s | 96/100/104 + 3% |
| power on wall@25℃, Watt | 2832/2950/3068 ± 5% |
| power efficiency on wall @25°C, J/TH | 29.5 ± 5% |
| Detailed Characteristics | Value |
| Power Supply | |
| Power supply AC input voltage, Volt (1-1) | 200~240 |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(1-2) | 20(1-3) |
| Hardware Configuration | |
| Network connection mode | RJ45 Ethernet 10/100M |
| Server Size (Length*Width*Height, w/o | 400*195*290 |
| package), mm(2-1) | |
| Server Size (Length*Width*Height, with package), mm | 570*316*430 |
| Net weight, kg (2-2) | 14.6 |
| Gross weight, kg | 15.8 |
| Environment Requirements | |
| Operation temperature, °C | 0~40 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
| Operation altitude, m(3-1) | ≤2000 |
Additional information
| Purchasing Guidelines
- The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above. Welcome to ask for details for different order.
For some countries,DDP service (PRICE including the custom cost and shipping charge) also can be provided. - The pictures shown are for reference only; the final shipment version shall prevail.
- We kindly request your understanding that once an order or preorder has been placed with BITMARS Group, it is considered final and cannot be canceled.
| Shipping Details
- Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMARS has received full payment.
- For the pre-order, the specific delivery date of which is subject to the factory. If there is any update on the schedule, BITMARS would keep the buyer fully informed.
- Clicking here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products.
| Warranty
- Kindly note that for new brand 100% miners,warranty is 12 months/6 months (up to different policy from factory ) since the production from factory.
- BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
- If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
- Clicking here for a complete list of the Terms & Conditions that apply to all orders placed on shop.bitmain.com.
