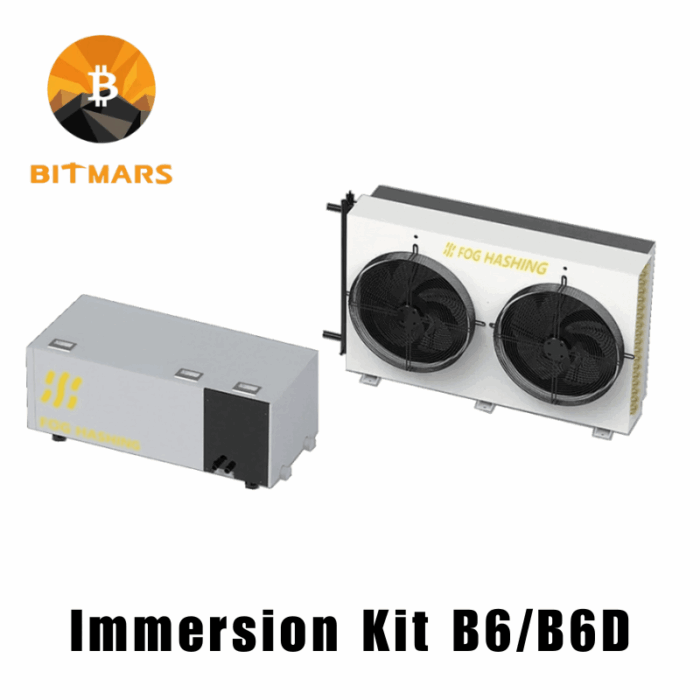

FOGHASHING Immersion Mining Kit B6/B6D

IMMERSION MINING KIT B6

Flexible Deployment From 1 to Unlimited

• Modular design, supporting distributed and centralized deployment
• Advanced fluid design, higher heat dissipation efficiency
• Outstanding appearance design
• One-year free warranty, and optional warranty expanding service

B6 is an immersion cooling case designed for professional mining

• Can accommodate 6 Antminer S19.
• For different numbers of miners, B6 can be flexibly deployed. It supports single deployment and modular deployment, just like building blocks.
• External cooling supports dry cooler or water cooling tower, choose according to the local environment.
• Please provide your needs, and we will provide customized solutions according to your needs.

Product Features

High integration

Sensors, PDU, Network, and other facilities are all integrated inside the B6 tank.

Remote management

Support remote monitoring and control by FogHashing SaaS platform. IoT sensors have built-in logic to control automatically, to save the power of cooling and maintenance costs.

Responsive power consumption

Support the “Demand Response” program with fast and safe batch operation.

Easy to deploy

Support the “Demand Response” program with fast and safe batch operation.

B6D（Dry cooler）

One B6D with one dry cooler, suitable for fast & easy deployment.

Single circulation

Uses only oil circulation to eliminate secondary heat exchange.

Designed for high-heat areas

Standard water curtain, use water to assist heat dissipation under high-temperature conditions.

Cooling capacity adjustment（Optional）

According to the ambient temperature change, automatically adjusts the fan speed, to achieve dynamic energy saving.

B6- More than one , customized technical solution

• Support two options of dry coolers or water cooling towers

•  Support two-layer rack deployment to save deployment space

• Support heat recovery

• Provide deployment proposal drawings

B6 / B6DTank	B6D dry cooler
Outer size               1420(L)*575(W)*620(H) mm	Outer size              1560(L)*440(W)*952(H) mm
N.W. / G.W.              130kg / 180kg -B6      110kg / 166kg-B6D	N.W. / G.W.             117kg / 133kg
Total weight           230kg (with coolant and miners)	Input voltage        3-phase 380-415V 50/60Hz
Input voltage         3-phase 350-480V 50/60Hz  Single-phase 200-277V 50/60Hz	Heat Transfer        30kW@25°C 20kW@35°C
Output voltage     Single-phase 200-277V 50/60Hz	Operating temp    -10°C ~ 40°C
Cooling capacity   30kW@30°C	Coolant capacity   14L
Power                      400W	Power                      580W x2
Operating temp   -10°C ~ 40°C	Air volume              13000m³/h
Display                    1.32” OLED Screen	Noise                       71dB(A)-10m
Coolant volume   160L-B6  174L-B6D	Pipe diameter       DN25（External thread diameter 32mm）
Capacity                 6 ASIC miners	Pipeline                   5m x2
Network                  100Mbps Ethernet switch
External cooling   Dry cooler/water cooling tower
Pipe diameter       DN25（External thread diameter 32mm）
Inlet and outflow temperature          45/65°C
INoise                      55dB(A)-10m
