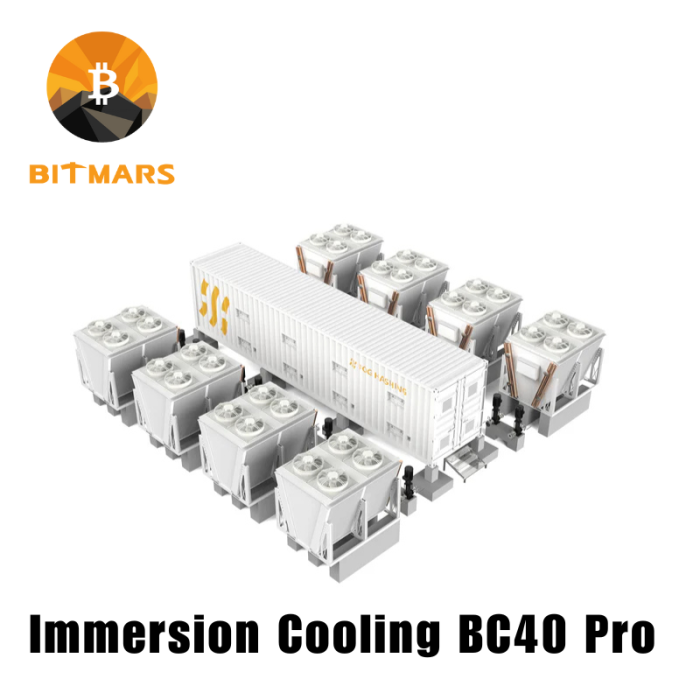

FOGHASHING Immersion Cooling Container BC40 PRO (Support 384 AntMiner S19 XP or 480 WhatsMiner M60/M50)
The BC40 MEGA is a high-density immersion cooling design with the goal of providing a full-stack solution for large-scale mining customers. Support up to 384 miners (AntMiner S19 XP) or 480 miners (WhatsMiner M60 M50) inside.
Due to rapid market changes, miner prices may fluctuate multiple times even in a short period. Please confirm the price with our sales before making payment.
$161,600.00 – $253,270.00
Ordering 2 or more machines can also reduce shipping costs, so contact our sales team for the best rates!
Trusted by
Specification
| – |
BASIC |
PRO |
| Dimensions(L*W*H)(mm) | 12192*2438*2896 | 12192*2438*2896 |
| Shipping Weight(T) | 13 | 13 |
| Operating Weight(T) | 23 | 23 |
| Coolant Capacity (L) | 14000 | 14000 |
| Cycle Mode | Single loop | Single loop |
| Miner Capacity | 384 S19/M50 | 384 S19/M50 |
| Tank Quantity | B24 Tank*16 | B24 Tank*16 |
| Operating Temperature(℃) | -25°C ~55℃ | -25°C ~55℃ |
Electrical Performance (- /✓ optional/standard)
| – |
BASIC |
PRO |
| Input Voltage and Frequency | 3-phase 350-480V 50/60Hz | 3-phase 350-480V 50/60Hz |
| Max Power Load (kW) | 1693 | 2822 |
| Output Voltage and Frequency | Single-phase 200-277V 50/60Hz | Single-phase 200-277V 50/60Hz |
| Safety Certification | CE/UL | CE/UL |
| Operating Power(kW) | 100 | 134 |
| Power Distribution Cabinets(A) | 1200Ax1 *2 | 1000Ax2 *2 |
| PDU | Smart PDU * 16 | Smart PDU * 32 |
| Inlet Cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 3/0AWG(85mm x4) x1 *2L2 4-wires cable 3/0AWG(85mm x4) x1 *2L3 4-wires cable 3/0AWG(85mm x4) x1 *2N 4-wires cable 3/0AWG(85mm x4) x1 *2PE 1-wire cable 3/0AWG(85mm) x1 *2 | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 3/0AWG(85mm x4) x2 *2L2 4-wires cable 3/0AWG(85mm x4) x2 *2L3 4-wires cable 3/0AWG(85mm x4) x2 *2N 4-wires cable 3/0AWG(85mm x4) x2 *2PE 1-wire cable 3/0AWG(85mm) x2 *2 |
| Smart Meter | – | ✓ |
| Integrated Wiring | ✓ | ✓ |
| Network | ✓ | ✓ |
| UPS | – | – |
| SPD | ✓ | ✓ |
Cooling Capacity
| – |
BASIC |
PRO |
| Cooling Capacity(kW) | 1440 | 1920 |
| Cooling Type | Closed water cooling tower
or Dry cooler |
Closed water cooling tower
or Dry cooler |
| Inlet Temperature(℃) | 45 | 45 |
| Outlet Temperature(℃) | 60 | 60 |
| Design Reference Temperature (℃) | 35 | 35 |
Additional information
| Purchasing Guidelines
- The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above. Welcome to ask for details for different order.
For some countries,DDP service (PRICE including the custom cost and shipping charge) also can be provided. - The pictures shown are for reference only; the final shipment version shall prevail.
- We kindly request your understanding that once an order or preorder has been placed with BITMARS Group, it is considered final and cannot be canceled.
| Shipping Details
- Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMARS has received full payment.
- For the pre-order, the specific delivery date of which is subject to the factory. If there is any update on the schedule, BITMARS would keep the buyer fully informed.
| Warranty
- Kindly note that for new brand 100% miners,warranty is 12 months/6 months (up to different policy from factory ) since the production from factory.
- FogHashing will cover shipping costs when shipping a replacement unit within the warranty period.
- If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without FogHashing’s prior consent, FogHashing will not be liable for any damage arising therefrom.
- Clicking here for a complete list of the Terms & Conditions that apply to all orders placed on foghasing.io.
Note |
|||
|
Shipping fees may vary based on your destination port and delivery address. Please contact our customer service team before placing your order to confirm the shipping details and get an accurate freight quote. |
|||
Get A Free Quote Now !
All orders will be dispatched according to their delivery batch sequence. Machines will be shipped within 3-7 days from our warehouse. For bulk orders, an additional day or two may be required. We always strive to ship all orders to our customers as soon as possible. Products are shipped via (DHL Express/UPS/ARAMEX/TNT) once full payment has been verified. Wire payments (T/T) take 3-7 business days, while transactions via cryptocurrency payment gateway usually take a few hours to a maximum of one business day to verify.
International delivery typically takes 5-8 business days. DDP shipping may take 8-10 days.
*All sales are final and non-refundable under any circumstances.
Wire transfer Via Bank, Western Union Via Online Or Crypto Currency (Pay with Bitcoin | Ethereum | Bitcoin Cash | Litecoin )
Payment Acceptable. All products listed on our website are priced in US Dollars.
As Bitcoin has a Volatility price it will show the total amount of BTC to be paid at the time of Checkout.
*All Machine Price Is Fluctuating Depend On Behavior Of Market .*
First : We Ship Mostly Via (DHL Express/ UPS/ ARAMEX/ TNT).
Second : Some Country We have DDP (Delivery Duty Paid) Shipping. We handle customs and door-to-door delivery, and taxes and duties are included in the website price. Clients do not need to pay any duties or customs charges for DDP shipping countries.
DDP Shipping Country List : United States, Germany, Russia, Dubai, United Kingdom, France, Belgium, Luxembourg, Netherlands, Denmark, Czech Republic, Poland, Austria, Ireland, Portugal, Sweden, Spain, Vietnam, Thailand, Malaysia (Note : Some Country can send Only More than 30Kg).
DDP Shipping You Need to Request Manually : [email protected].
Without DDP Country Or Normal Shipping We Help You to Reduce Your Tax to Making Lower Invoice.
Our product are Excluded of all value added taxes and customs duties sold by scminer. You will be solely responsible for paying any outstanding taxes and duties as per your country’s law and customs. If any miner needs to be returned to Hong Kong, the client will be responsible for paying the additional shipping costs.
Customer FAQs
lf you would like to place an order via our official website, you can pay directy withcryptocurrency,such as Usdt, Bitcoin, Ethereum, Litecoin etc.
Diferent types of machines have different warranty time, the longest warranty time of themachine is two years, the shortest is half a year.
You need to pay the local custom duties once the goods arrived in your country, justcontact your local logistic company to pay the fees is OK, all the shipment will be donevia DAP shipping terms.if necessary, we can provide the commercial invoice with a valueyou would like to declare.
The income of large currencies is relatively stable, and the income of small currenciesfluctuates greatly due to the influence of many factors. lf you want to know the specificrevenue of the product every day, you can log in to the mining pool website.
For those in stock machines, we will arrange the shipment immediately and they will arriveyour country in approximately 5-10 business days.
Yes, you can consult our sales staff for specific preferential prices.
Related products
FOGHASHING Immersion Cooling Suite M6 (Designed for Whatsminer M56/M66 series)
$380.00 – $4,490.00In stock
FOGHASHING Immersion Mining Kit C1/C1 Ultra
$1,151.00 – $1,439.00In stock

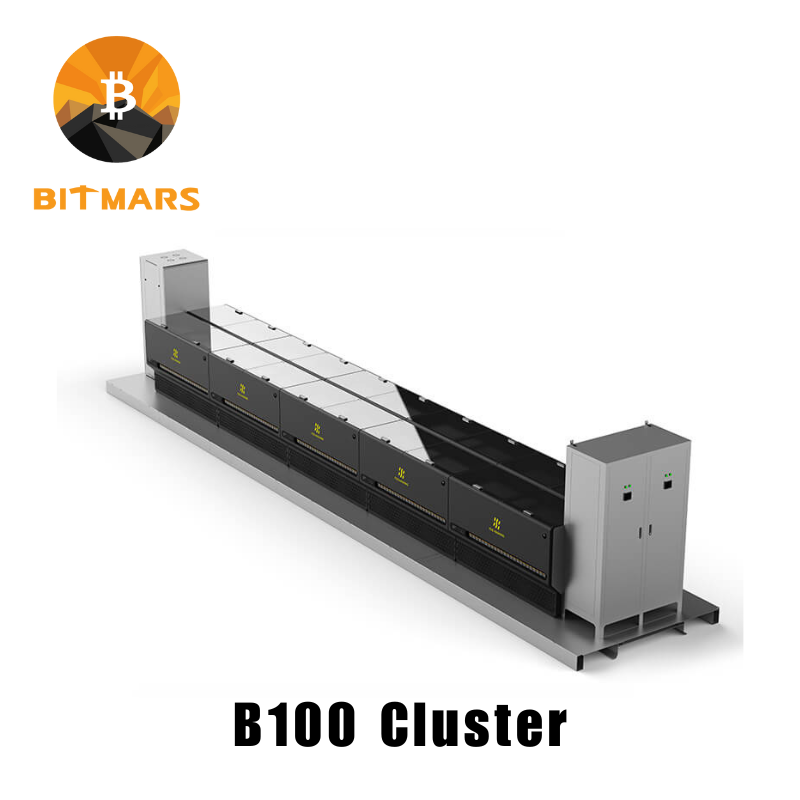

FOGHASHING Immersion Cooling Suite B100 Cluster
$99,999.00In stock

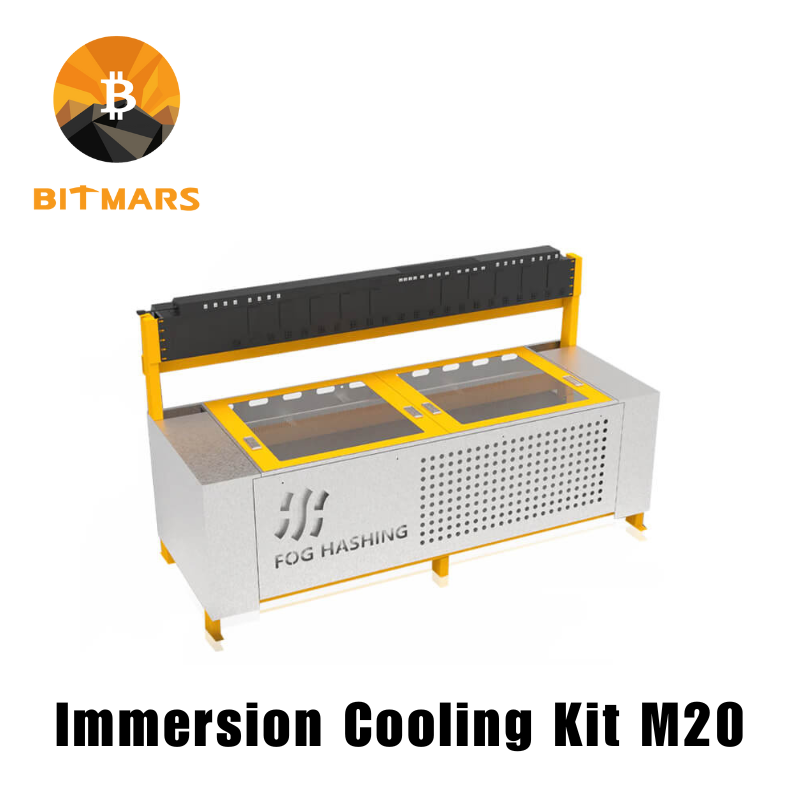

FOGHASHING Immersion Cooling Suite M20 (Support 20 Whatsminer M56/M66 Series)
